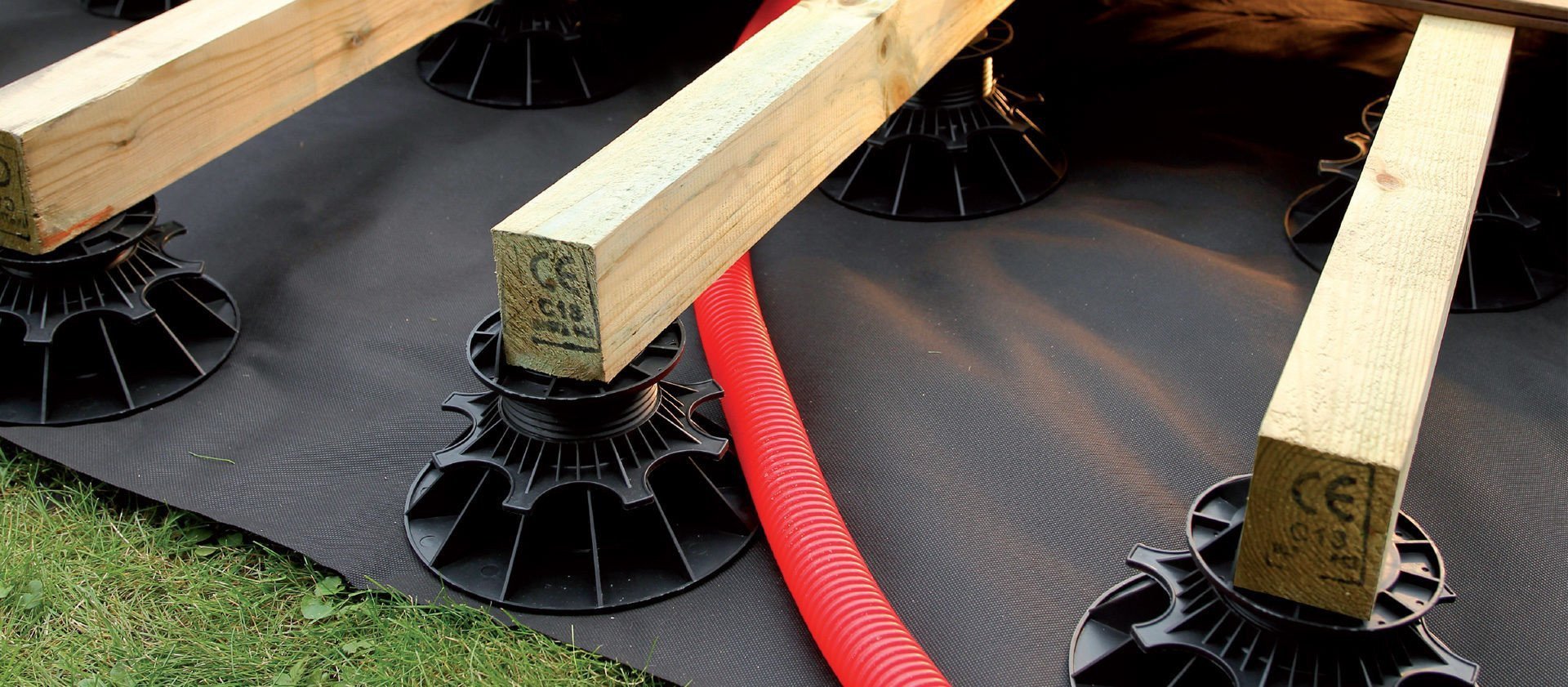

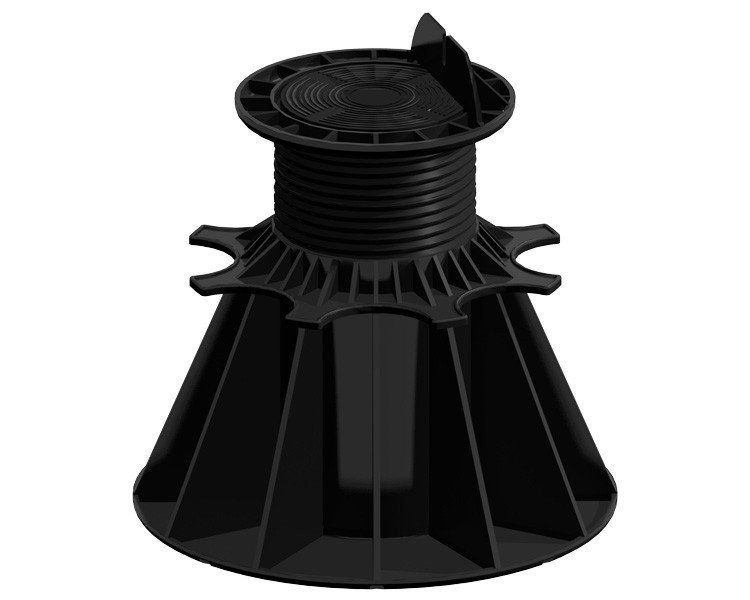

Pedestals for NIVO® wood decks

To shim and level deck joists

plots pvc réglables pour terrasse en bois
Time savings
Resistant
Stable
Know everything
  • To shim 25 to 530 mm joists
  • Pedestal head with joist support
  • Height adjustment by micrometric actuators
  • Supports up to 1,000 kg
  • Compliant with D.T.U 43.1 and 51.4
  • Made of recyclable polypropylene

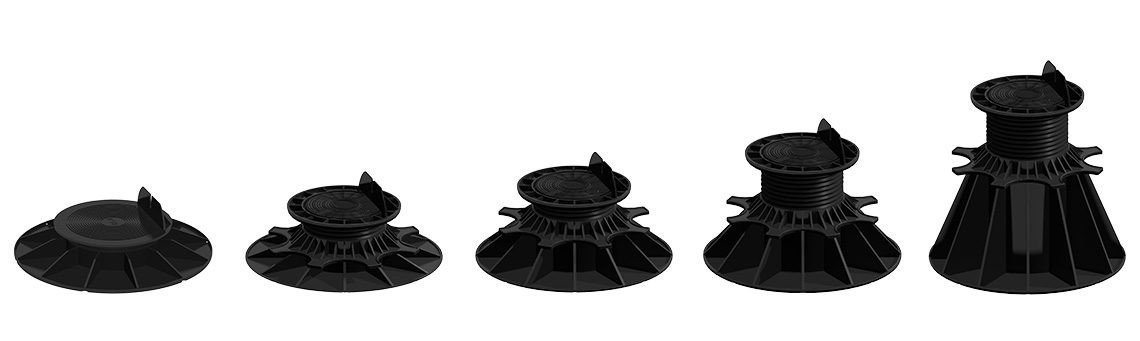

Characteristics

Heights
25 to 40 mm
40 to 60 mm
50 to 80 mm
80 to 140 mm
140 to 230 mm
Material
Polypropylène
CaCO3
Options
Height extender - 60 mm
Adjustment pad for 2 to 5° slope
Colour
Black

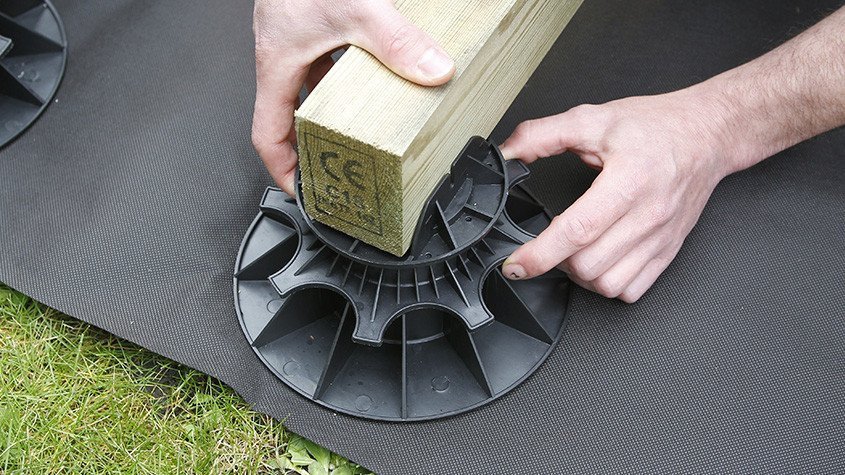

Simple and quick installation

Thanks to its rotative screw system, the NIVO® pedestal enables very easy implementation. The adjustment of the structure level is simplified as much as possible. The rotation of the ring on the actuator makes the height vary according to the direction of rotation.

Using NIVO® pedestals enables an impressively quick installation. The implementation of the structure and the shimming of a deck becomes simpler and quicker. Save considerable assembly time.

courbe technique de résistance

A solid and robust pedestal

Each NIVO® pedestal supports up to 1,000 kg of centred compression load. The quality of material used ensures resistance no matter what and remarkable stability. Therefore, whether it's for a private or public deck (public-access buildings), NIVO pedestals are adapted to all types of projects and for maximum safety.

lambourde fixée sur une tete de plot

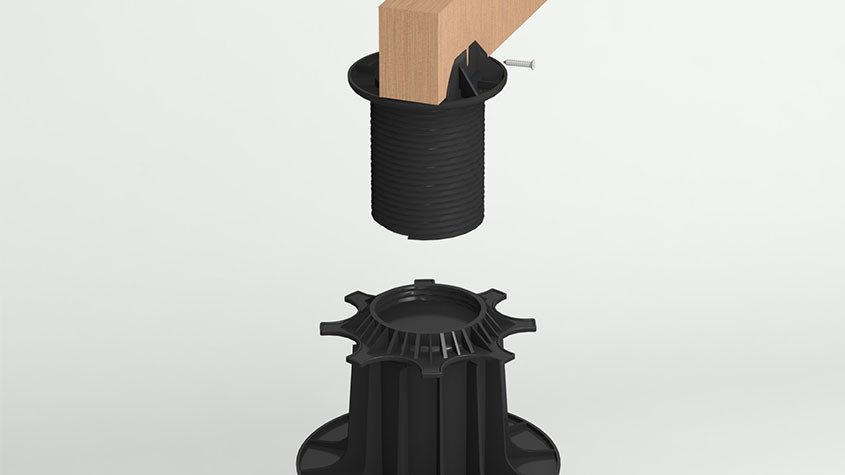

A pedestal head for joists

NIVO® joist pedestal heads have been adapted to wood joist fastening.

The L-shaped square enables screwing on the side to effectively maintain the joist on the pedestal.

Screwing may also be conducted above the joists and thus cross the pedestal head.

Adjustable pedestals for NIVO® joists

Developed by wood engineers, NIVO pedestals offer a full range of adjustable PVC pedestals specially intended for the installation of wood decks on deck tiles (wood or concrete).

Ranging from 25 to 240 mm in height, all of our pedestals are height adjustable and guarantee assembly robustness and precision for your deck on tiles. Material quality helps us ensure resistance to any bad weather, UV rays, and remarkable stability, proof of our products' quality.

NIVO pedestals are calibrated and sized in order to achieve maximum quality. In effect, the pedestal base (Ø 20 cm = 314 cm²) is sufficiently large to avoid the indentation of the deck into the natural ground. And the rotation screw diameter is one of the largest on the market, thus offering excellent pedestal stability.

Moreover, each pedestal head is equipped with four lugs which can receive any type of tile: wood, gravel, concrete...

Thanks to its rotative screw system, the NIVO® pedestal enables very easy implementation. The adjustment of the structure level is simplified as much as possible.

In fact, NIVO has developed a pedestal range specially intended for the installation of wooden decks on joists or concrete grating tiles or self-supporting wood. Solid and resistant to a load of at least one tonne, our pedestals are adjustable in height and easy to install. NIVO pedestals are adjustable in height from 40 to 60 mm. To complete the height range, a 6-cm height extender may be inserted between the base and the support.

Moreover, our pedestals are all compliant with Building Codes. The acceptable load per pedestal is therefore 1,000 kg to comply with after the Building Codes (compression test report upon request).

These must be installed on stabilised land (waterproof, concrete, sand, plant soil...). To prevent plant growth under the deck, it is highly recommended to lay down geotextile fabric.

NIVO pedestals for tiles help to install concrete or wood self-supporting tiles between lugs. To do so, count on an average of 4 to 5 pedestals per m2 in order to achieve a stable and robust area.

And to know the exact number of pedestals necessary for your project, use our on-line calculator.

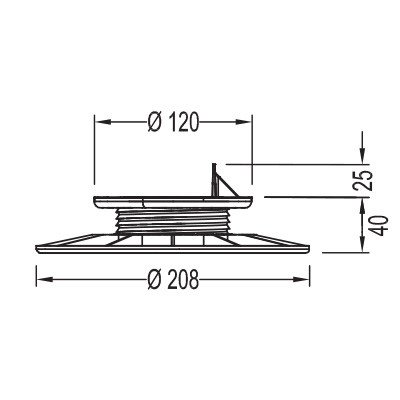

Technical diagrams

  • Pedestal 25 - 40 mm
    • - min. opening: 25mm
    • - max. opening: 40mm
    • - weight: 0.17kg

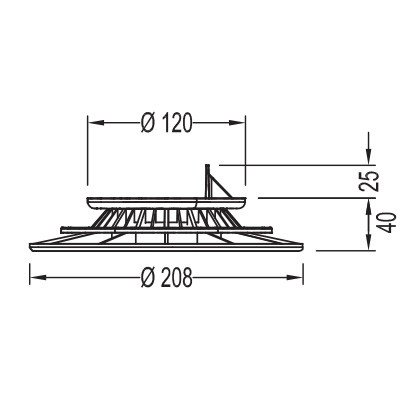

  • Pedestal 40 - 60 mm
    • - min. opening: 40mm
    • - max. opening: 60mm
    • - weight: 0.23kg
  • Pedestal 50 - 80 mm
    • - min. opening: 50mm
    • - max. opening: 80mm
    • - weight: 0.26kg
  • Pedestal 80 - 140 mm
    • - min. opening: 80mm
    • - max. opening: 140mm
    • - weight: 0.33kg

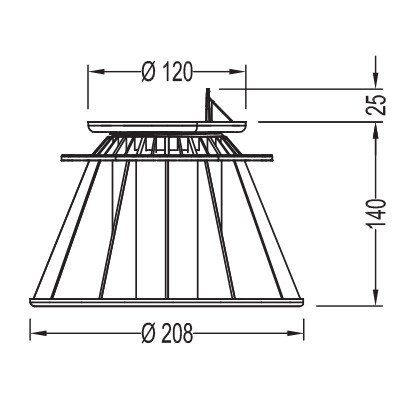

  • Pedestal 140 - 230 mm
    • - min. opening: 140mm
    • - max. opening: 230mm
    • - weight: 0.51kg

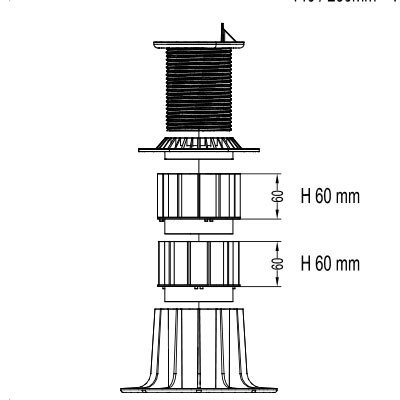

  • schéma du plot avec réhausse
    Pedestal 140 + height extender
    • - min. opening: 230mm
    • - max. opening: 530mm
Pedestal height extender 60 mm

60 mm height extender for 140-230 mm pedestals. Stack up to 5 height extenders one on top of the other to reach a maximum height of 530 mm while keeping a stable seat.

2 to 5% slope corrector

The NIVO® slope corrector ensures a slope correction ranging from 2 to 5% in level difference.

The connection with the pedestal base is effective, enabling good stability of your tile or joist deck.
